Specifications

Code - LA1790
Base Length - 1150mm
External Base Width Closed - 700mm
External Base With Open - 1130mm
Internal Base Width Closed - 600mm
Internal Base Width Open - 1030mm
Base Width Adjustment - Electric
Under Bed Clearance - 130mm
Minimum Height Yoke - 300mm
Maximum Height Yoke - 1920mm
Average Lift Range - 1620mm
Lifter Weight - 42kg
Minimum Storage Height - 1350mm
Under Base Height - 55mm
Maximum Hoist Reach - 1060mm
Minimum Hoist Reach - 610mm
Hoist Reach at Maximum Height - 515mm

Product Code: LA1790

Features

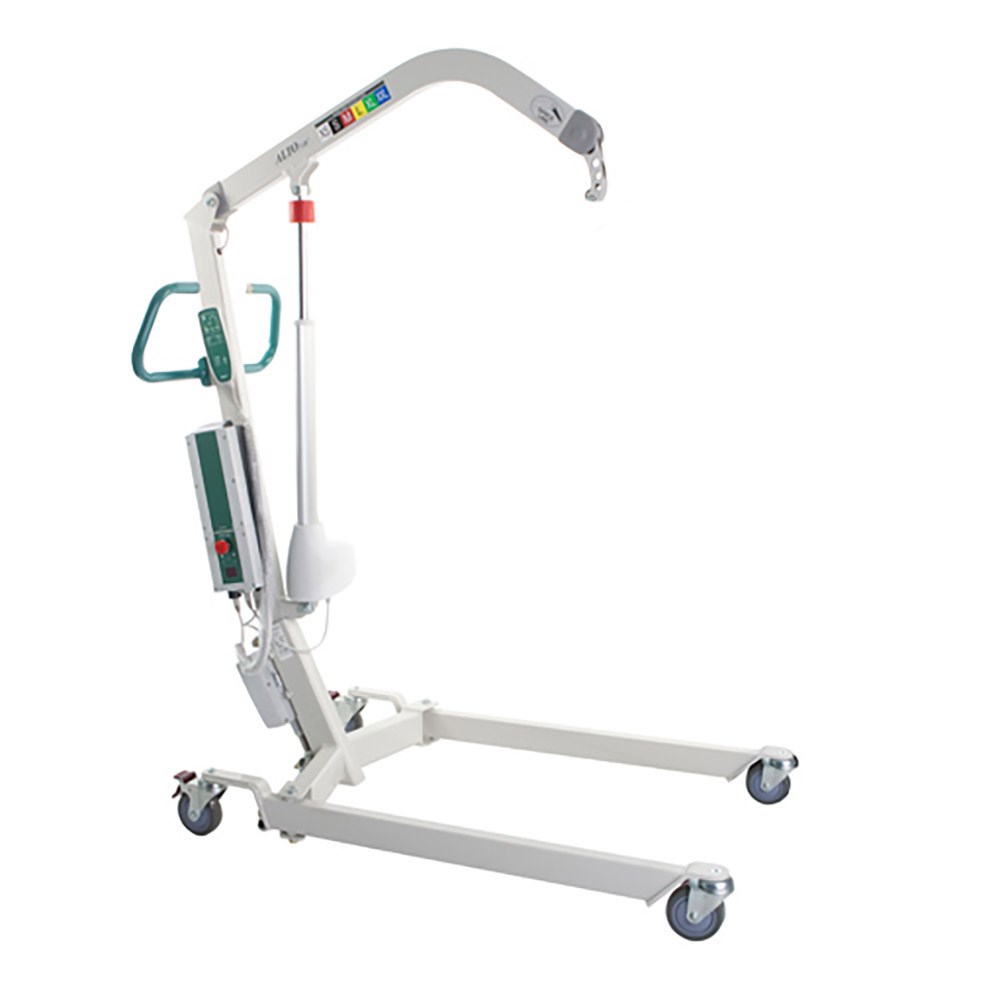

Compact medium sized heavy duty mobile patient lifting hoist
Innovative and ergonomic
Electric base width adjustment
Provides superior patient lift space through the use of Space Link technology
The unique feature of Space Link technology allows the patient to be rotated through 360° at full lift height, making the carer's job easier and safer
Lifter of choice for institutional or home care use where a high capacity lift is required
Offers more patient space than most other larger size lifters
Tested and complies to Australian Standards AS ISO 10535-2002

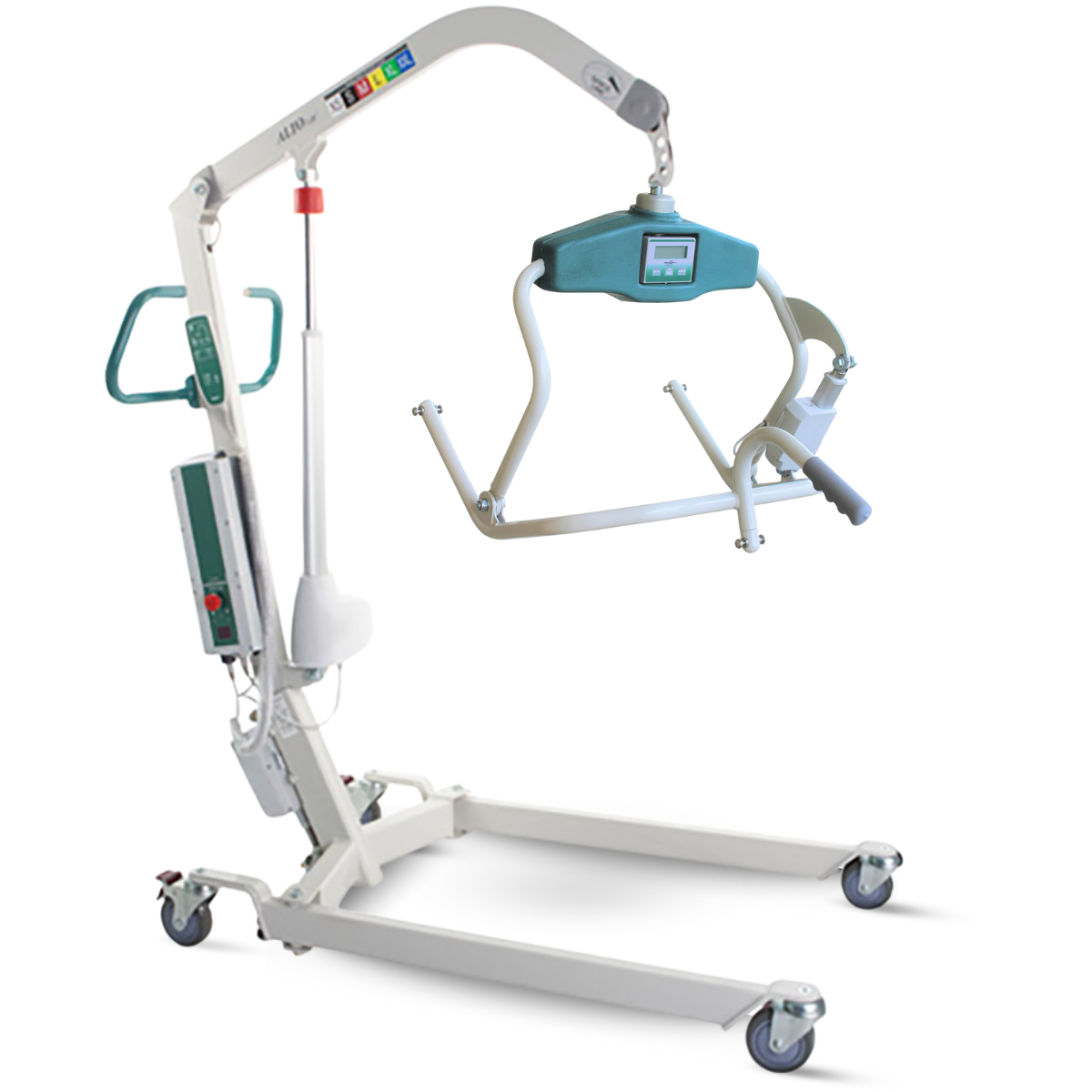

Includes power pivot and integrated weigh scale

Kit Components

Code

Item

Qty

LA0150

Alto Hoist, Electric Leg Spreader

LA0320

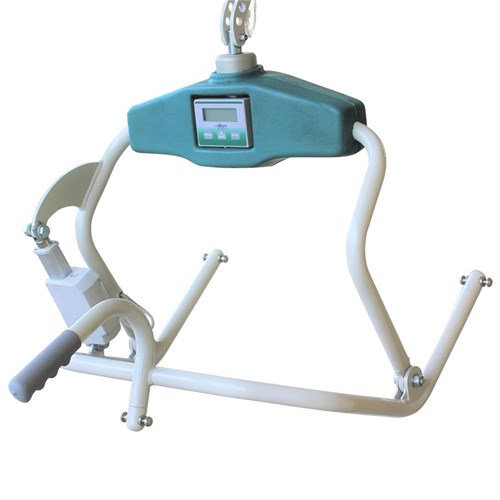

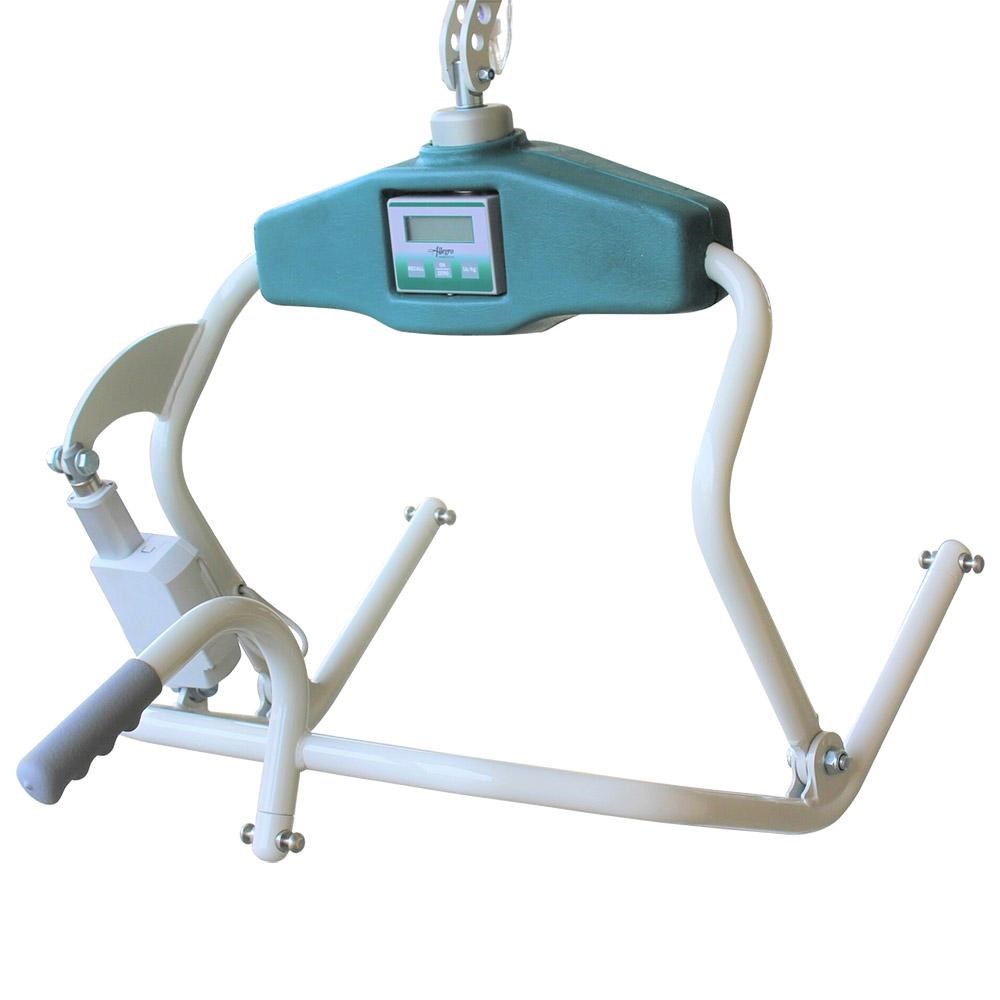

Power Pivot Frame with Integrated Weigh Scale (must be factory fitted to lifter when supplying new)

Mobile Hoists

ALTO Hoist, Electric Leg Spread with Power Pivot and Integrated Weight Scale

Product Code: LA1790

Description

Features

Kit Components
