Specifications

Code - BD4570
Standards compliance - IEC 60601-1
- IEC 60601-2-52
Warranty - 10 Years Frame, 3 Years Electrics
Height Range
Low Height - 280mm
High Height - 760mm

Mattress Surface Dimensions
Width - 890mm (expandable to 1190mm)
Length - 2030mm (expandable to 2130mm)

Overall External Dimensions
Overall Length - 2290mm (including bumpers)
Overall Width - 1030mm
Length Expandable - 2390cmm max
Width Expandable - 1340mm max

Weight Capacity
481kg Safe working load
416kg Max Patient Weight

Product Code: BD4570

Features

1 button press electric width adjustment
Exceptional low height to reduce falls risk
Full 125mm under bed clearance from head to foot end
4 corner bumpers
CPR release handle
Patient control lockout
Flat deck for ease of cleaning
Backrest angle indicator
One handed slow release head and foot end side rails
Forward and reverse Trendelenburg
Boostless™ backrest system and backrest angle indicator
4 x 125mm dual central locking castors
Integrated 100mm length extension
Certified for use by two people, one patient, and one bystander, ensures comfort in palliative environments
3 level bed exit alarm with scale and user friendly touch screen
Adjustable width headboard maintains a gap of under 60mm between the head board and siderails
Integrated touch screen on foot end of bed
Integrated patient monitoring with 3 sensitivity level bed exit detection with alarms
Integrated bed exit side view lights
Integrated patient weigh scale
1 x accessory power point on foot end
Integrated nurse controls on footboard and exterior of head end side rails
Integrated patient controls on interior of head end side rails

Hospital Beds

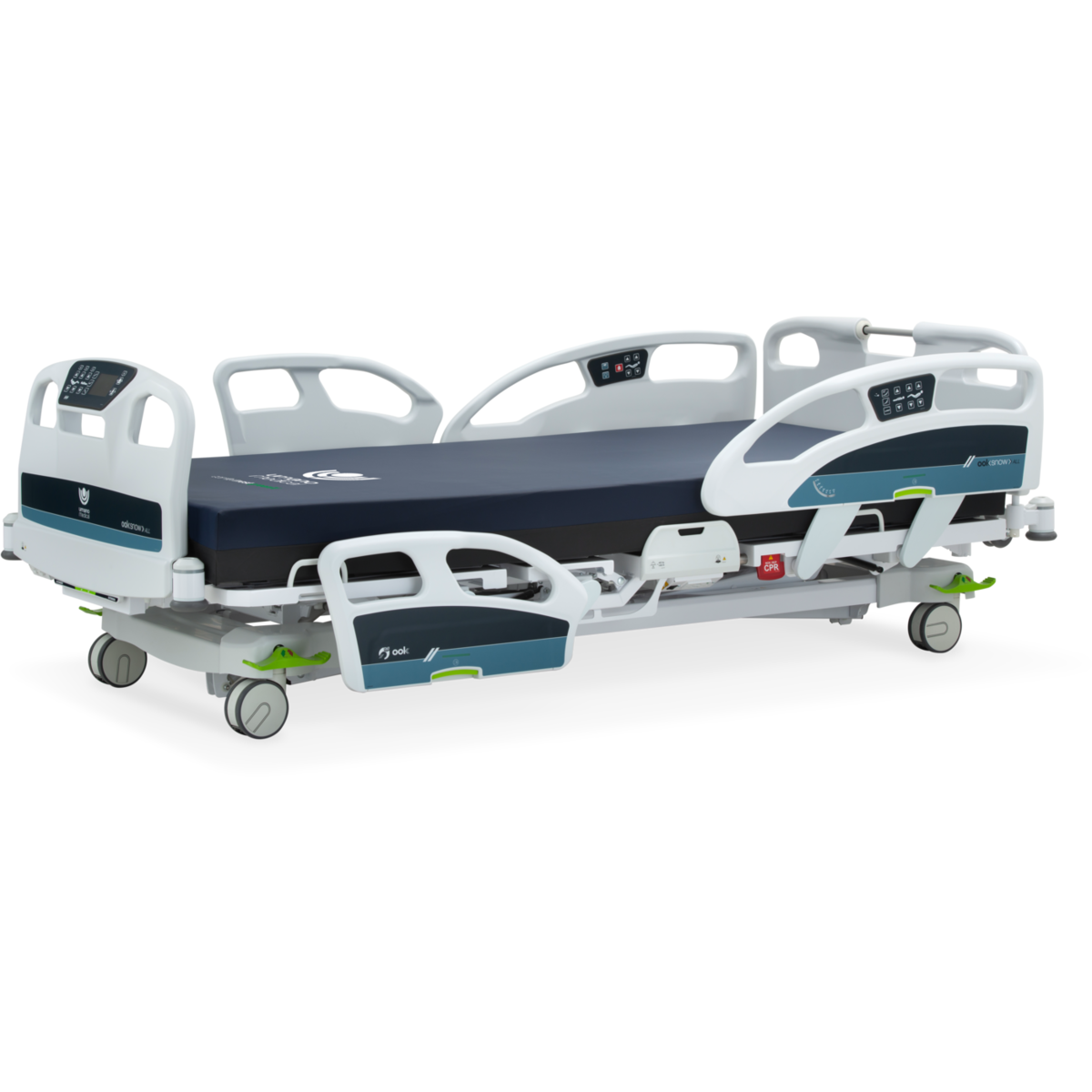

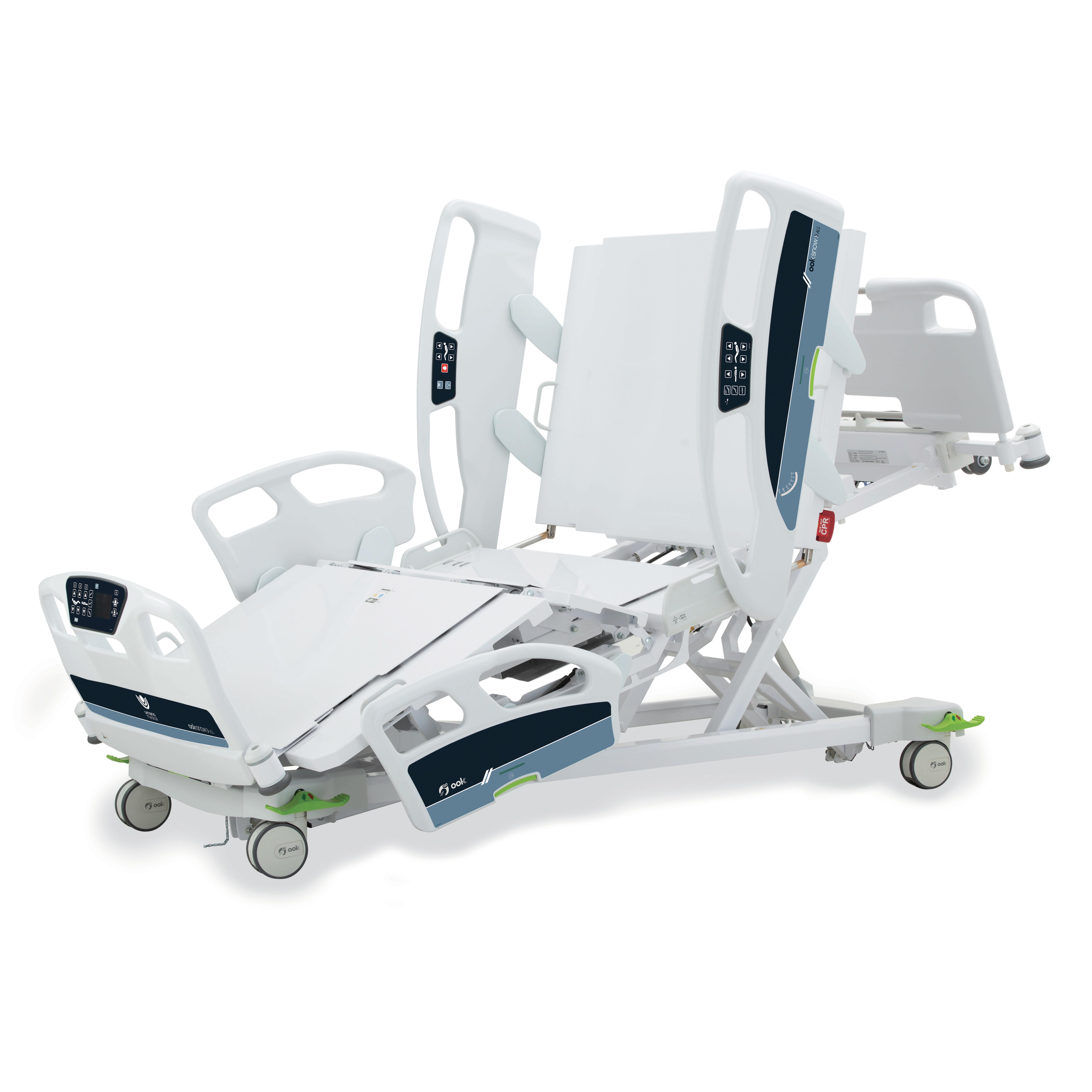

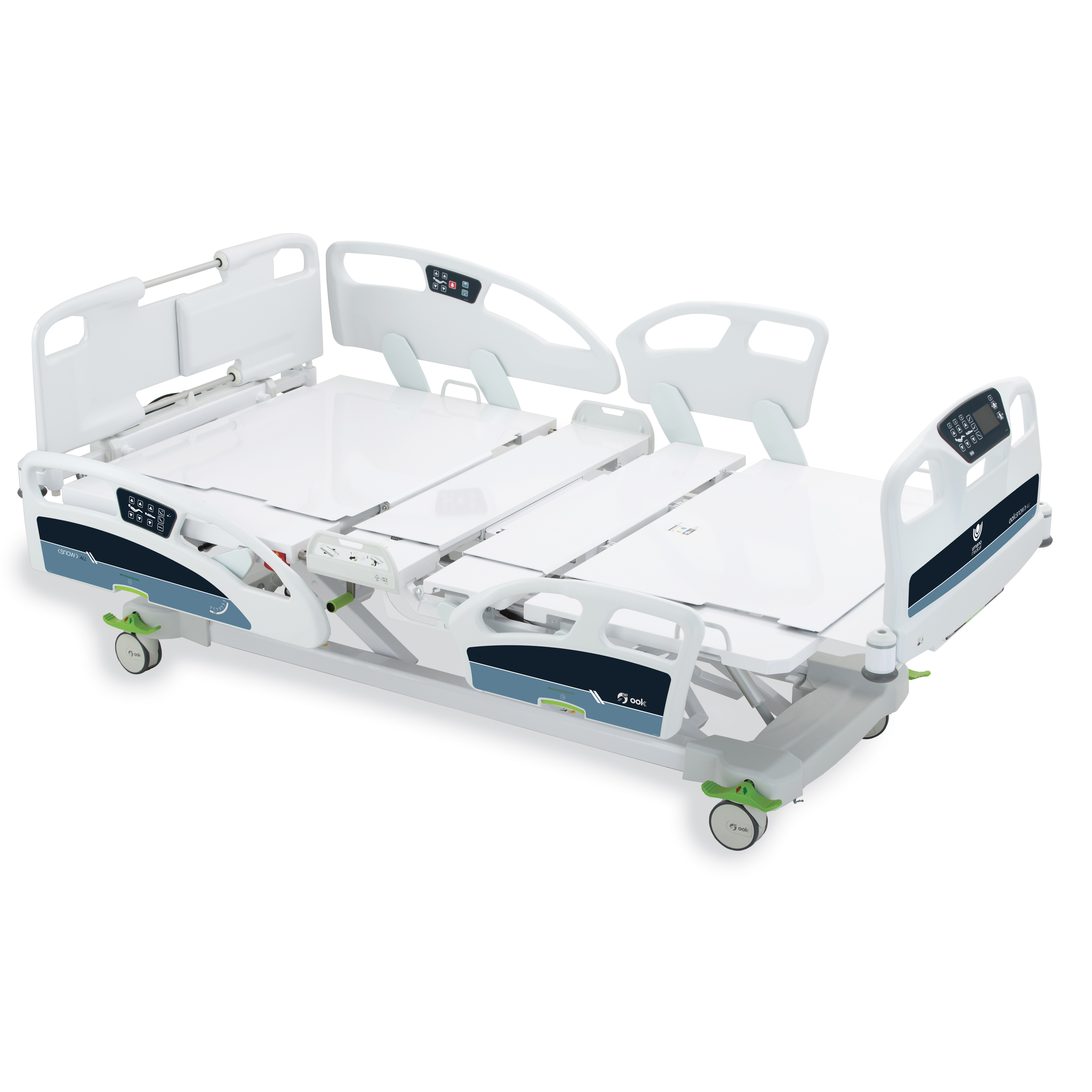

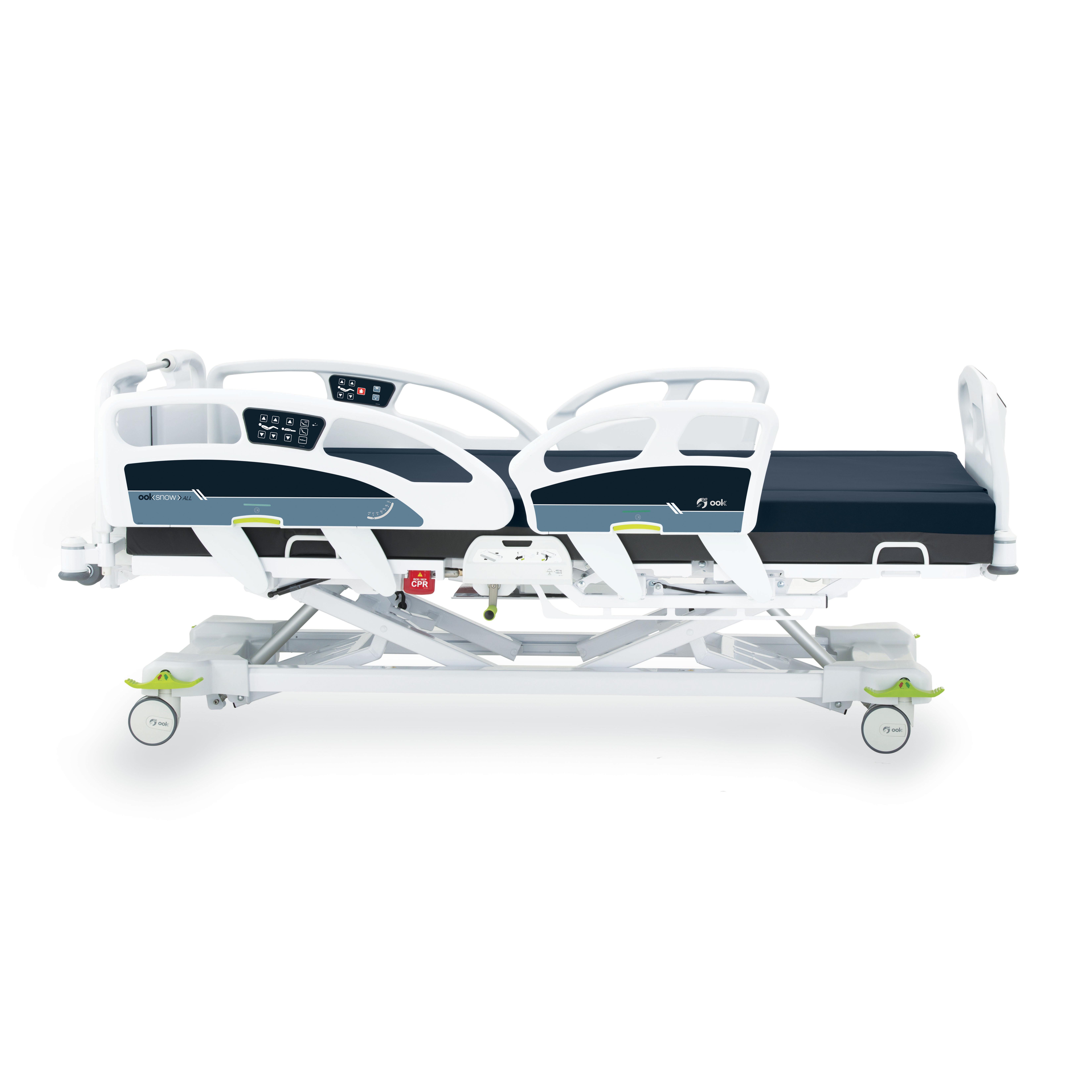

ook snow ALL Bariatric Hospital Bed

Product Code: BD4570
