Code	KE1670
Overall Size	780mm (W) x 1130mm (L), extending to 1800mm when fully flat
Mattress Size	1800mm (L) x 650mm (W) with a 500mm seat depth
Mattress Construction	100mm premium four-layer foam mattress with welded pressure-relieving cover.
Height Range	480mm - 860mm with lie-flat, forward tilt, and reverse tilt functionality
SWL	400kg
Backrest Adjustment	0 to 85 degrees with CPR emergency quick release
Trendelenburg Positioning	15 degrees head-down and foot-down tilt
Castors	Up to 30 degrees with 140mm raise height
Castors	150mm precision twin-wheel castors with four-wheel braking and centre steering
Wheelbase	590mm (W) x 750mm (L)
Undercarriage Clearance	140mm

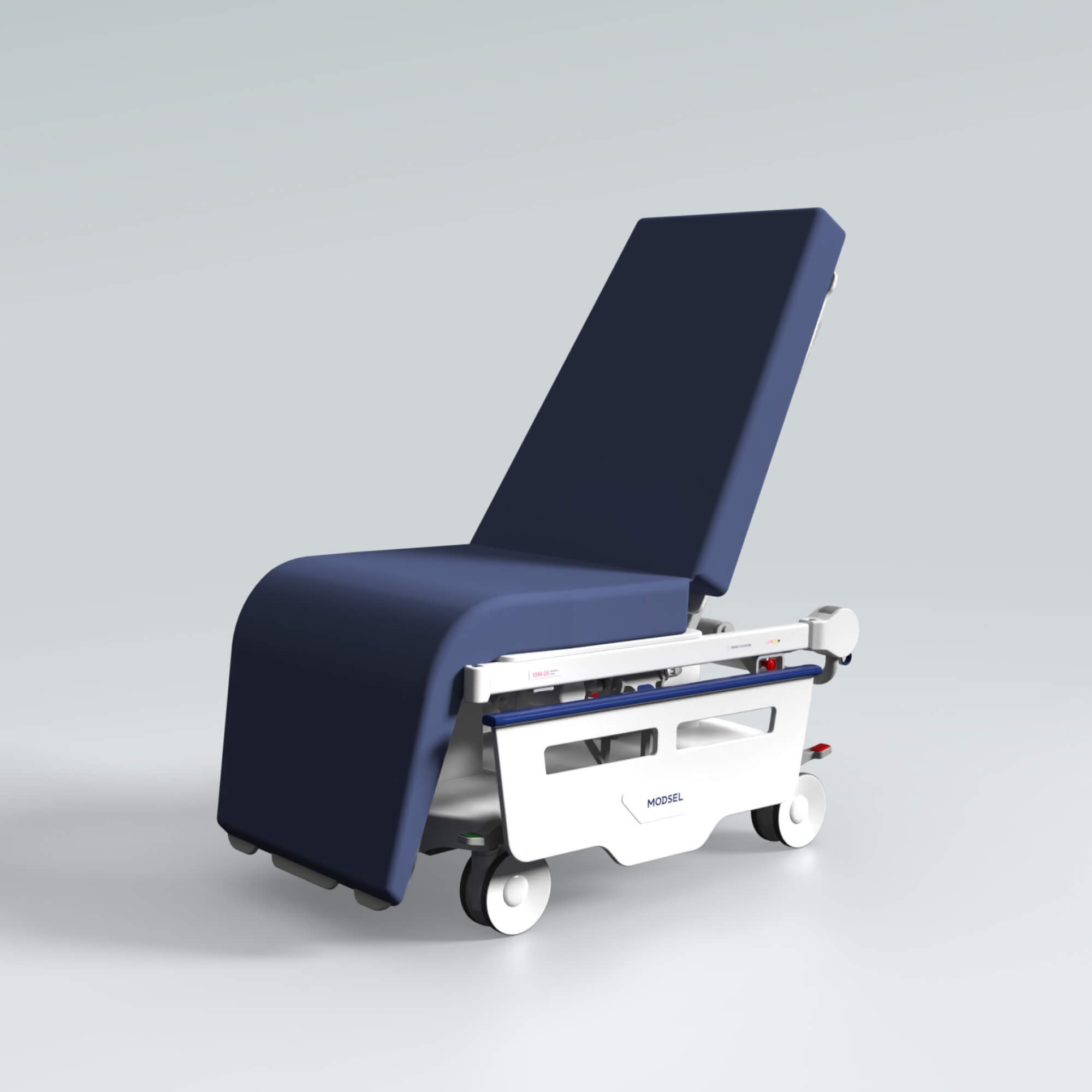

Compact stretcher chair design that maximises space utilisation while supporting admission, treatment, transport, and recovery in a single chair
Dual-column platform provides exceptional strength, stability, and durability
Class-leading 400kg Safe Working Load (SWL)
Full chair-to-bed functionality with independent backrest and leg-rest movement
Forward tilt, reverse trendelenburg, and trendelenburg positioning for enhanced patient management
Ultra-low entry height with fold-under dropsides for safe patient transfers
Premium multi-layer pressure-relieving mattress designed for comfort during procedures and recovery
Pop-up transport handles that can be used with the patient seated or lying flat
Long-life rechargeable battery system for reliable cordless operation
CPR emergency quick-release backrest
Centre steering wheel and precision castors for exceptional manoeuvrability
Smooth, gap-free construction supports infection control and simplifies cleaning
