Mobile Hoists

  • Specifications
Code - LA1760
Base Length - 1150mm
External Base Width Closed - 700mm
External Base With Open - 1130mm
Internal Base Width Closed - 600mm
Internal Base Width Open - 1030mm
Base Width Adjustment - Electric
Under Bed Clearance - 130mm
Minimum Height Yoke - 300mm
Maximum Height Yoke - 1920mm
Average Lift Range - 1620mm
Lifter Weight - 42kg
Minimum Storage Height - 1350mm
Under Base Height - 55mm
Maximum Hoist Reach - 1060mm
Minimum Hoist Reach - 610mm
Hoist Reach at Maximum Height - 515mm

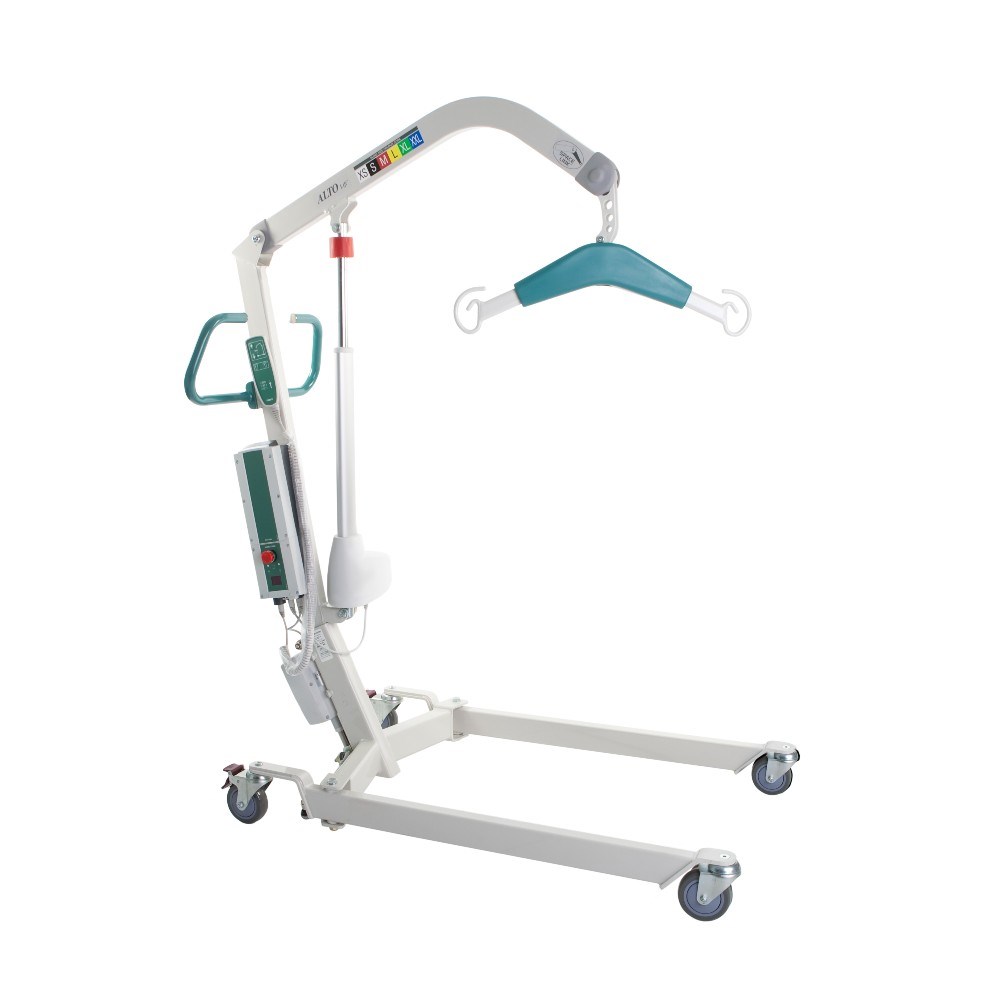

Alto Hoist with Electric Leg Spreader and Integrated Weigh Scale

Product Code: LA1760

Increase value Decrease value
Description
ALTO 200kg Hoist, Electric Leg Spread with Yoke Spreader Bar and Weight Scale (Kit item)
Features
  • Compact medium sized heavy duty mobile patient lifting hoist
  • Innovative and ergonomic
  • Electric base width adjustment
  • Provides superior patient lift space through the use of Space Link technology
  • The unique feature of Space Link technology allows the patient to be rotated through 360° at full lift height, making the carer's job easier and safer
  • Lifter of choice for institutional or home care use where a high capacity lift is required
  • Offers more patient space than most other larger size lifters
  • Tested and complies to Australian Standards AS ISO 10535-2002
  • Includes standard spreader bar and integrated weigh scale
Kit Components
Code
Item
Qty
LA0150
Alto Hoist, Electric Leg Spreader
1
LZ0160

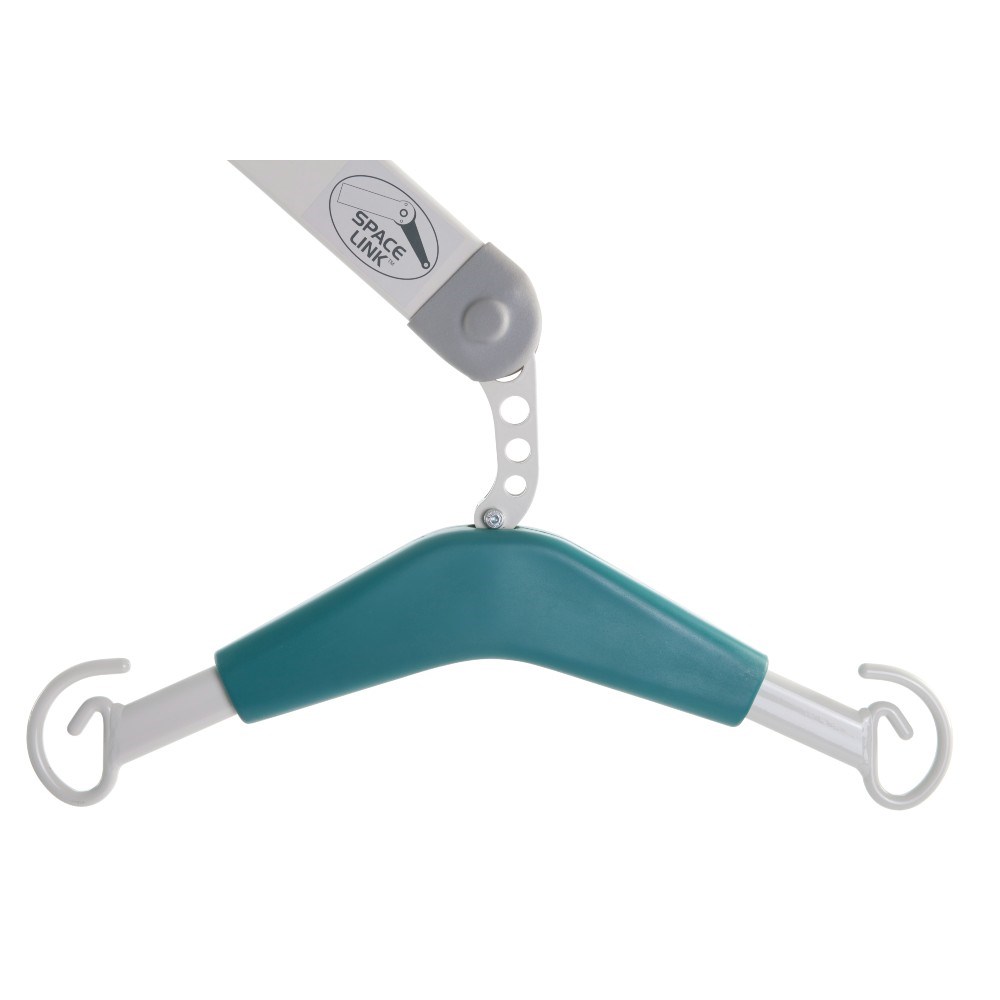

Yoke Spreader Bar- Std ( c/w cover)
1
KA0140

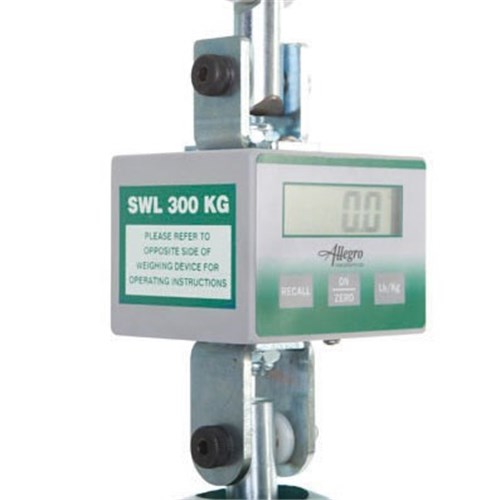

Weigh Device including Adaptor kit
1
