Mobile Hoists

  • Specifications

Base Length - 1005mm
External Base Width Closed - 605mm
External Base Width Opened - 1070mm
Internal Base Width Closed - 510mm
Internal Base Width Open - 975mm
Under Bed Clearance - 130mm
Minimum Height Yoke - 420mm
Maximum Height Yoke - 1735mm
Average Lift Range - 870mm
Under Base Height - 55mm
Maximum Hoist Reach - 875mm
Minimum Hoist Reach - 555mm
Hoist Reach at Maximum Height - 555mm
Lifter Weight - 41kg
Minimum Storage Height - 1260mm
Safe Working Load - 150kg

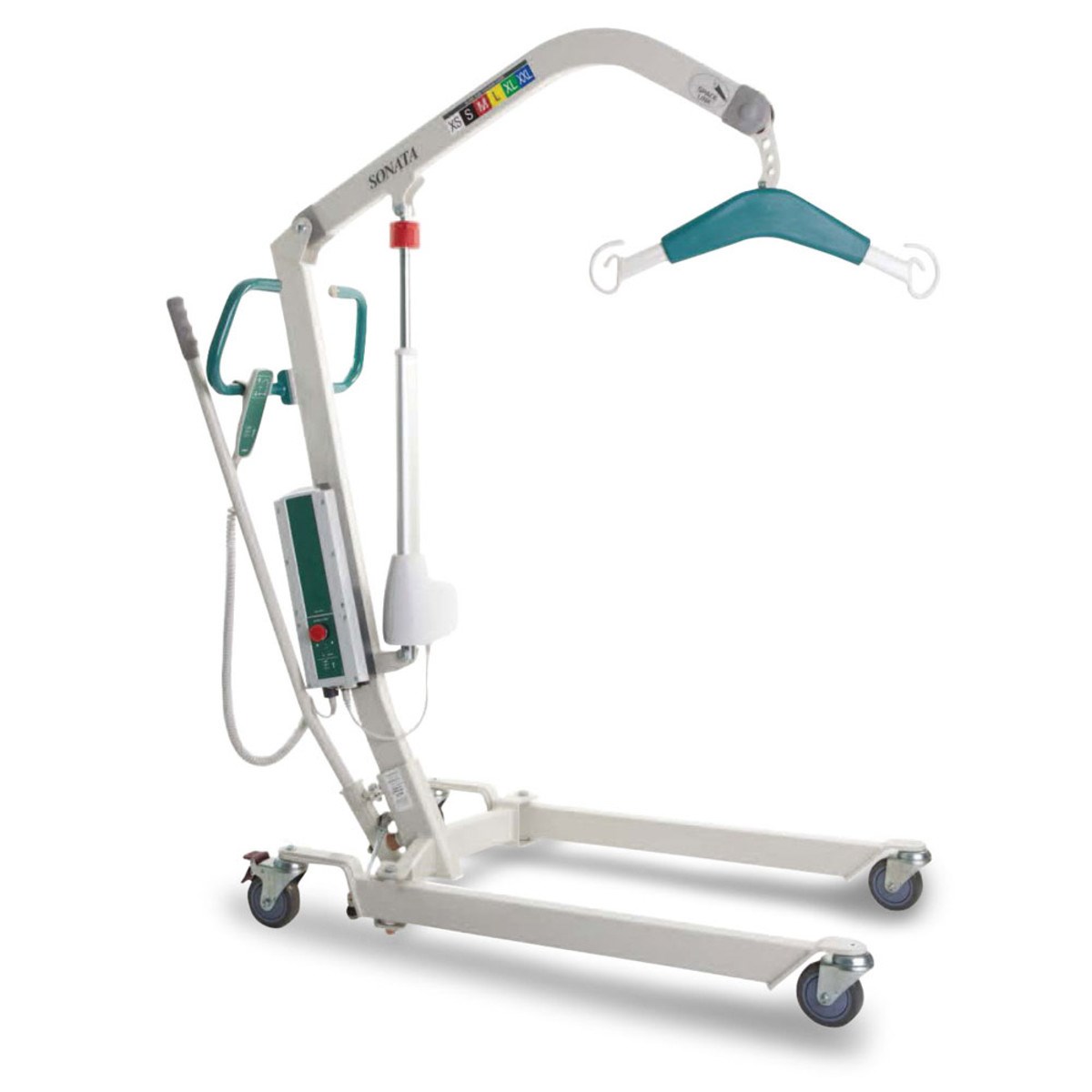

Sonata Hoist - Electric Leg Spread with Yoke

Product Code: LA0250

Increase value Decrease value
Description
SONATA 150kg Hoist, Electric Leg Spread with Yoke Spreader Bar- Std ( c/w cover) (Kit item)
Additional Information
ARTG Number - 136065
Kit Components
Code
Item
Qty
LA0140
SONATA 150kg Hoist, Electric Leg Spread no attachment
1
LZ0160
Yoke Spreader Bar- Std ( c/w cover)
1
