Mobile Hoists
Allegro Sonata
Mobile Hoists
Zoom
Specifications
Code - LA0070
Base Length - 1005mm
External Base Width Closed - 605mm
External Base Width Opened - 1070mm
Internal Base Width Closed - 510mm
Internal Base Width Open - 975mm
Under Bed Clearance - 130mm
Minimum Height Yoke - 420mm
Maximum Height Yoke - 1735mm
Average Lift Range - 870mm
Under Base Height - 55mm
Maximum Hoist Reach - 875mm
Minimum Hoist Reach - 555mm
Hoist Reach at Maximum Height - 555mm
Lifter Weight - 41kg
Minimum Storage Height - 1260mm
Safe Working Load - 150kg

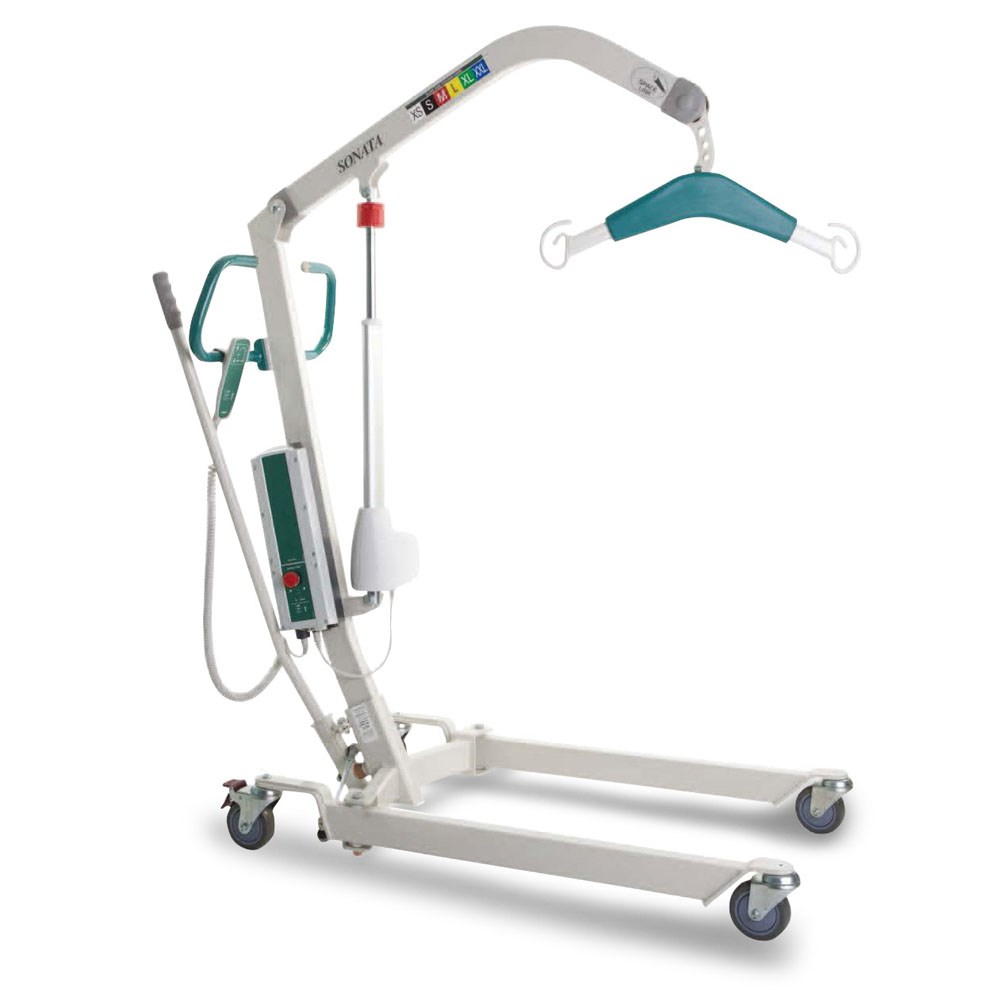

Allegro Sonata
Product Code: LA0070
Increase value
Decrease value
Request a quote
Description
SONATA 150kg Hoist, Manual Leg Spread no attachment
Features
Designed primarily for domestic use or as a lightweight institutional hoist
Provides superior patient space through the use of Space Link technology
The unique feature of Space Link allows a patient to be rotated through 360 degrees at full lift height, making the carer's job easier and safer
Offers more patient space than most other larger size lifters
Tested and complies to Australian Standards AS ISO 10535-2002
Additional Information
ARTG Number - 136065
